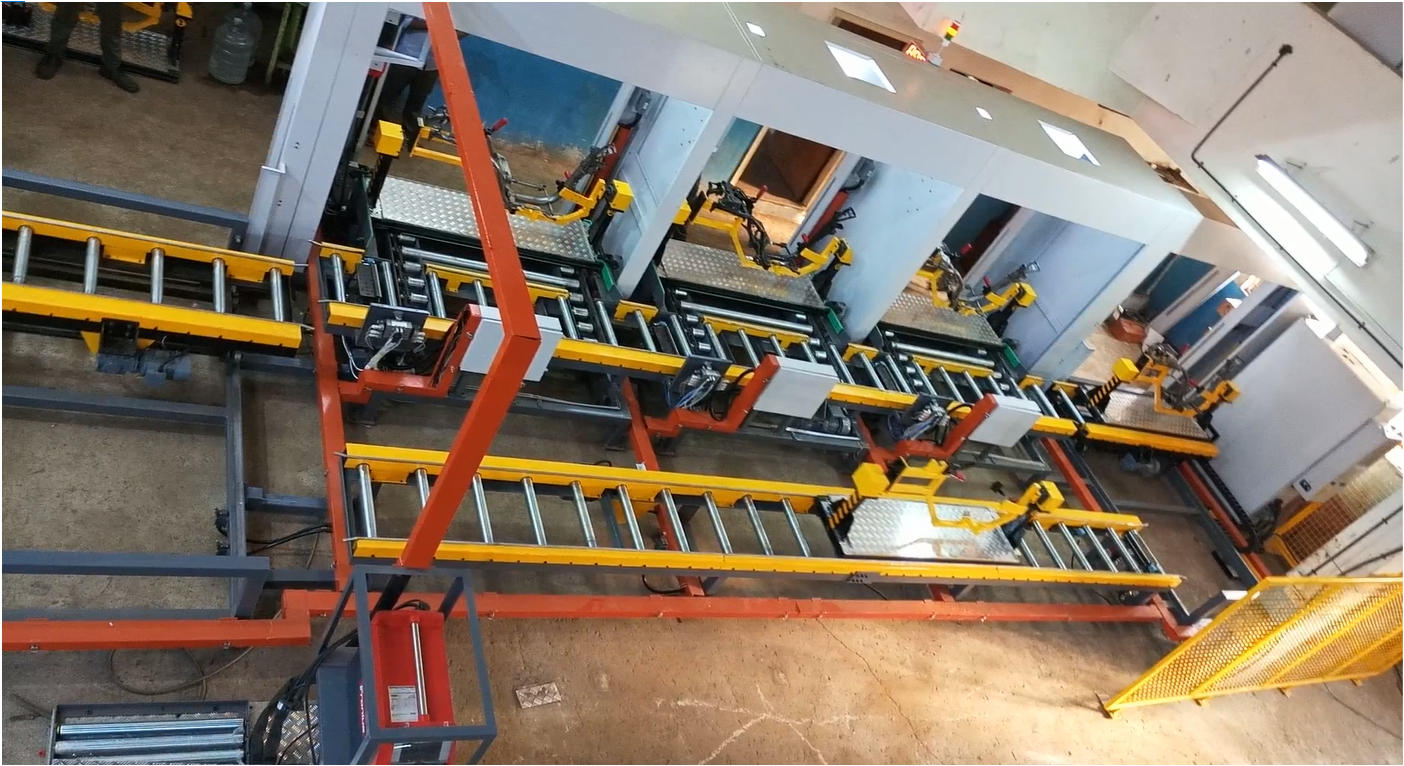

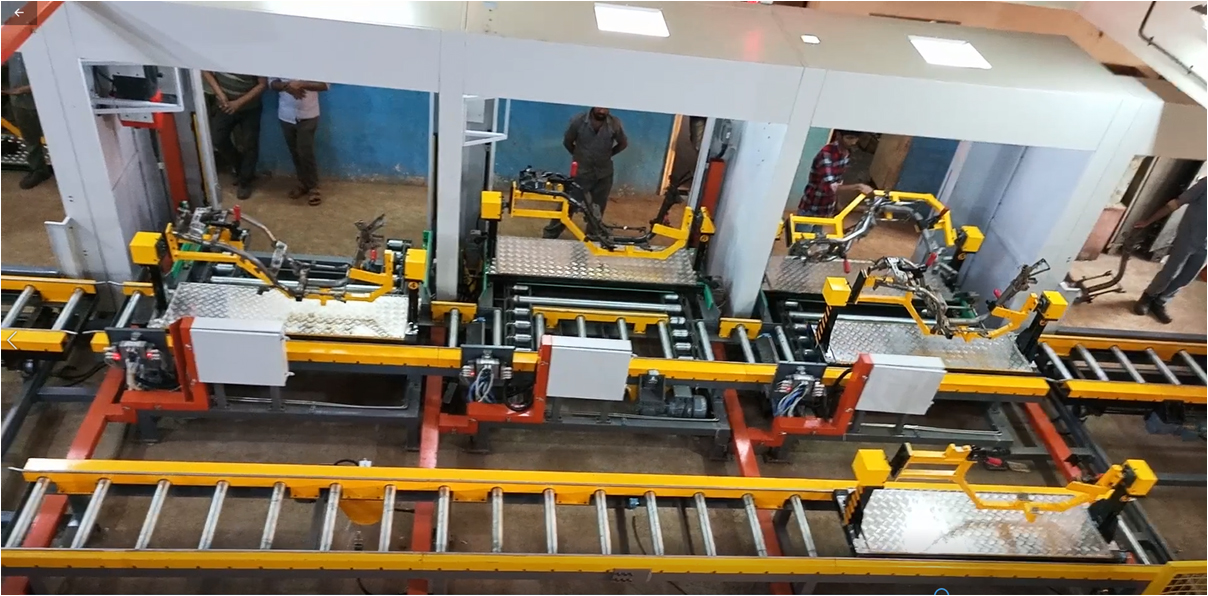

Manual Frame Welding System
- Manual Frame Welding System is designed to eliminate fatigue for the operator which handling the frame manually.
- System designed for the three operator to get frames for welding automatically, whenever acknowledge his zone is free.
- Powerised chain driven roller conveyor system designed to meet the demand with VFD speed controls.
- Shuttling conveyor at feed end used to deliver the empty pallet whenever in demand.
- Shuttling conveyor at the delivery end used for the same purpose with empty pallet after manually removed the welded frame.
- Pneumatic system used for automatic lifting the platform, clamping the pallet and stopping the pallet at various stages.
- The entire system is controlled through PLC and sensors.
