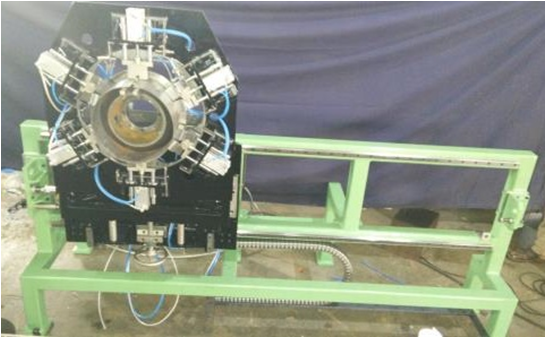

The Band Positioner is a special purpose machine designed for clamping the band with six segment OD clamping to ensure the band in correct circular shape with the help of cone.

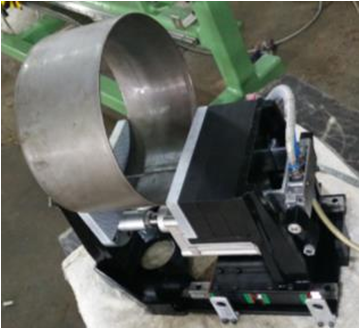

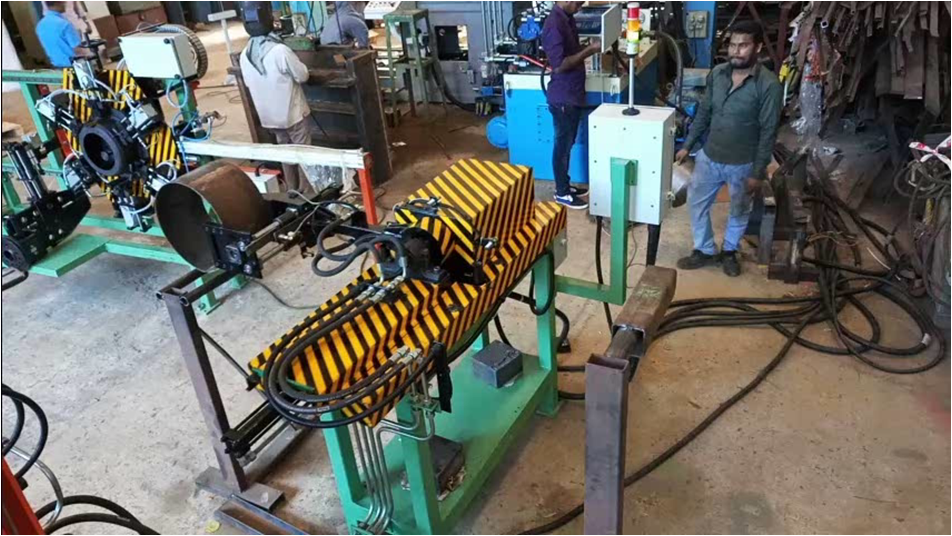

Hydraulic gripper with pneumatic support mounted on the Robo arm, pick the rolled band from Band positioner and load to the Butt welding machine.

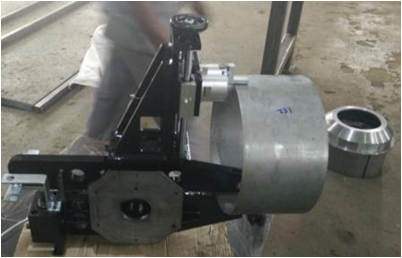

Hydraulic gripper mounted on liner slide with servo rotary axis clamp the band from butt welding moves out and swing to 180º, locate the band in Trimmer housing for flash trimming operation.
